Aquarium Overflow Plumbing Diagram

An overflow is a chamber of your aquarium where water will run over the top and drain out a pipe in the bottom.

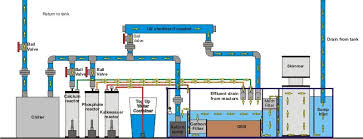

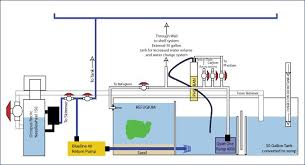

Aquarium overflow plumbing diagram. For the sake of simplicity all of the content and diagrams describe the most simple and conventional herbie setup an overflow box with standpipes coming in through the bottom. An overflow box is for non drilled aquaria and performs the same job by means of a siphon over the edge of the aquarium leading to an overflow inside the box. Reef tank plumbing is a necessity unless you purchase an all in one aquarium.

The overflow box itself consists of a weir along with drain pipes and other plumbing in order to get water out of your tank and down into your sump various types of overflow boxes and plumbing methods are employed to accomplish this task of draining your aquarium. Even with an all in one aquarium you may want to re plumb it to ensure that it is quiet and reliable. Herbie overflow method reef tank plumbing guide the herbie method can completely silence your aquarium drain and eliminate microbubbles.

An overflow box is used to drain water from your display aquarium down into your sump or filtration system. B a relief manifold with valve when the pump s gph ratio is higher than your overflow s ability to drain water we need to reduce the flow. We ll cover designs plumbing diagrams parts the overflow durso herbie bean animal the return line and return pumps.
